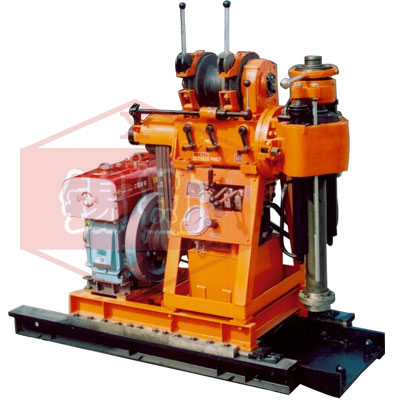

XY—1A移動巖芯鉆機 The A XY- 1 rock drills the machine
XY—1A型移動巖芯鉆機是一種具有油壓給進的高速輕便鉆機。
The XY—a type rock 芯drills the machine is a kind of having hydraulic-pneumatic giving into .Of the high speed is easy and convenient to drill the machine.
鉆機適應范圍：
本鉆機適用于固體礦床的普查勘探及工程地質勘察等鉆孔以及各種混凝土結構檢查孔。
根據地質的不同，可選用金鋼石，合金及鋼粒等鉆頭進行鉆進。
當終孔分別為75mm和46mm時，額定鉆孔深度分別為100m和180m。深不得超過各鉆進深度的110%，大開孔直徑允許為150mm
This drill the census that machine be applicable to solid mineral bed explores and work .The distance geology investigates etc,drills a hole and every kind of concrete construction Check bore.
According to the geology of different,the eligibility used the gold steel石,metal alloy And steel an etc.auger proceeds to drill into.
When eventually the bore distinguishes to 75 mms with the 46mms,the sum settles to drill.Each 110% that drill into the depth,biggest open the bore diameter admission.For the 150 mms.
鉆機特點：
具有油壓給進機構，提高鉆進效率，減輕工人勞動強度。
鉆機配有上球卡式夾持機構并帶有六方主動鉆桿，可實行不停機倒桿，工作效率高，安全可靠。
配有孔底壓力表指示壓力，便于掌握孔內情況。
手柄集中，操作方便。
鉆機結構緊湊，體積小，重量輕，便于解體及搬運，適用于平原和山區工作。
Drill machine characteristics:
Have the hydraulic-pneumatic giving into the organization,increase to drill into the efficiency,alleviate the worker the labor the atrength.
Drilling the machine have the ball cassette clips to hold the prganizati on and take six squares are active to drill the pole,can practice to do not shut down to pour the pole,The work effciency is high,the safety is depend able.
Having the bore bottom manometer instruntions pressure,easy to control the circumstance inside the bore.
The hand handle concentrates,operation is convenient.
Drill the machine construction tightly packed,the physical volume is small,the weight is linght,easy to disintegration and porterage,be applicable to the plain to work with the mountain area.
技術參數 Technique parameter
鉆機 Drill the machine
鉆進深度 100，180m
大開孔直徑 150mm
終孔直徑 75，46mm
鉆桿直徑 42，43mm，50mm
鉆機外廓尺寸（l×b×h) 1433mm×697mm×1274mm
鉆機重量（不包括動力機） 420kg
Drill into depth 100,180m
It is biggest to open bore diameter 150mm
Eventually bore diamter 75,46mm
Drill a hole the 90degrees:The Cape of-75degree
Drill the size of outside the machine（l×b×h) 1433mm×697mm×1274mm
Drill machine weight(do not include the motive machine) 420kg
油泵 Oil Pump
型號 YBC-12/80
額定壓力 8Mpa
流量 8ml/r
額定轉速 1500r/min
Model number ybc-12/80
The sum settles pressure 8Mpa
Discharge 8ml/r
The sum settles to turn soon 1500r/min
卷揚機 Hoist
大起重量（單繩） 11KN
卷筒轉速 121，76，36r/min
卷筒圓周線速度（二層） 1.05，0.66，0.31m/s
卷筒直徑 140mm
鋼絲繩直徑 9.3mm
鋼絲繩容量 35m
抱閘直徑 252mm
閘寬寬度 50mm
It is biggest to rises weight(single rope)11KN
A turns soon 121,76,36r/min
A circumference line speed(two layer) 1.05,0.66,0.31m/s
A diameter 140mm
Steel wire rope diameter 9.3mm
Steel wire rope capacity 35m
Embrace diameter 252mm
The takes width 50mm
回轉器 Turn round the machine
立軸轉速（五檔） 1010，790，470，295，140r/min
立軸行程 450mm
立軸空載向上大移動速度 3m/min
立軸空載向下大移動速度 4m/min
立軸大給進力 15KN
立軸大起重力 25KN
The stalk of furns soon(five fine) 1010，790，470，295，140r/min
stalk route of fravel: 450mm
The stalk of gets empty to carry to heading up the biggest ambulation flat-out 3m/min
The stalk of gets empty to carry to get down the biggest ambulation flat-out 4m/min
The stalk of is biggest to give into pressure 15KN
The stalk of is biggest to rise gravity 25KN
電動機 Electric motor
型號 Y160M-4
額定功率 11KN
額定轉速 1460r/min
Model number Y160M-4
The sum settles power 11KN
The sum settles to turn soon 1460r/min
柴油機 Diesdl engine
型號 ES1100
額定功率 12.1W
額定轉速 2200r/min
Model number ES1100
The sum settles power 12.1W
The sum settles to turn soon 2200r/min
|
